We operate with excellence in providing laser cutting and welding services, metal sheet bending, pressing, painting, and more.

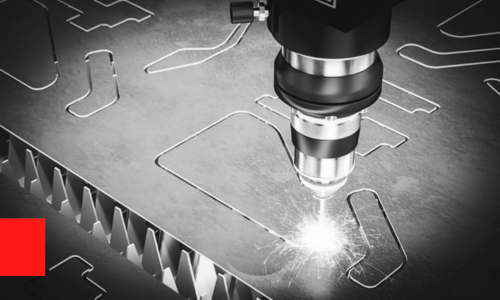

We have laser cutting machines that ensure high precision and excellent cutting finish. Our services aim to reduce costs through the optimization of cutting layouts, minimizing cutting time and maximizing material usage, delivering precise shapes.
Carbon Steel – Up to 19 mm
Stainless Steel – Up to 8 mm
Aluminum – Up to 6.35 mm

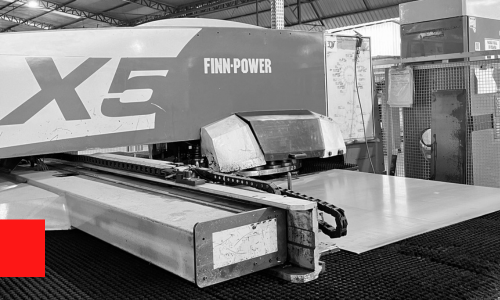

Punching Capacity
Carbon Steel: 3.00 mm
Stainless Steel: 2.00 mm
Aluminum: 6.35 mm
Cutting Table 1230 x 3000 mm with pistons for clamp positioning for sheets up to 4000 mm
Cutting Speed
High punching speed (X – 90 m/min // Y – 60 m/min)
Drilling Precision, 20 rotating turrets + 10 Multitool Turrets

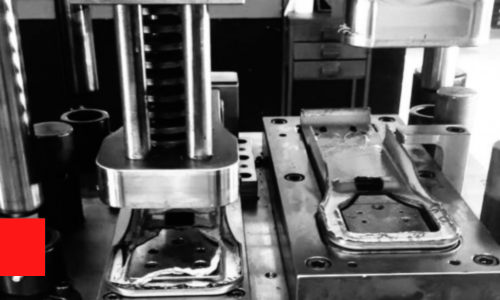

For forming services using presses, we offer equipment with capacities ranging from 40 to 300 tons.
Eccentric Press – 45 to 130 tons
Hydraulic Press – 40 to 300 tons
In this cutting and stamping process, hydraulic presses are used and are available in a wide variety of sizes and capacities according to the tooling developed.
3DJ’s bending service aims to precisely meet the requirements of each type of project.
That is why we invest in modern equipment, high-level tools, and specialized labor to deliver customized projects according to the client’s application. This allows us to accurately meet technical specifications.

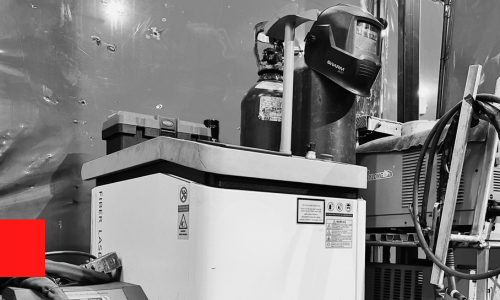

Welding thickness from 0.5 to 5.0 mm;
Maximum power: 2000W;
Welding speed: 0 to 250 mm/s;
Filler material feeder (2 wire coils);
Welding of carbon steel, aluminum, and stainless steel.
3DJ has qualified welders and certified welding processes.
Our services include the joining of various metallic materials such as Carbon Steel, Stainless Steel, and Aluminum using the following processes: MIG-MAG, TIG, Spot Welding, and Laser Welding.
3DJ also has qualified inspectors for non-destructive testing to ensure the quality of services.

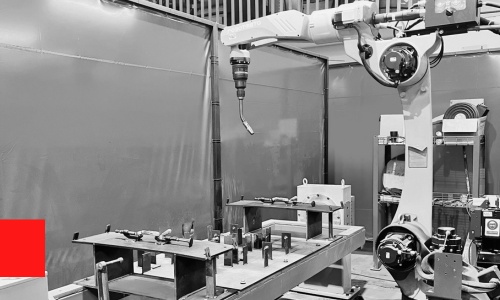

RobotMeta 2000/6 HW Robot – Features
500A MIG/MAG power source with pulse, pulse speed, double pulse/speed double pulse, conventional synergy, and conventional speed programs;
Positioner 2500 x 800 mm – capacity 300 kg;
Welding of carbon steel, aluminum, and stainless steel.

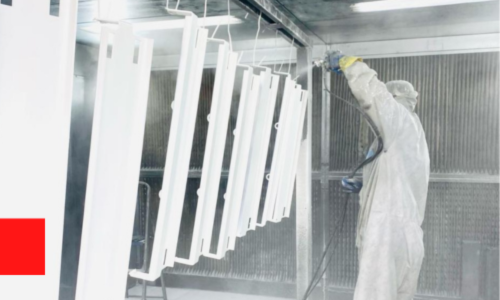

3DJ has a team of trained painters dedicated to providing the ideal coating for each type of application.
Our equipment is configured for liquid painting, and we also work with qualified partners for electrostatic painting services.
Our Liquid Painting Booth is designed for maximum efficiency and retention of suspended solid particles.
Our Paint Curing Oven uses electric resistance heating to ensure high quality standards.
Our Blasting Booth is designed to ensure maximum efficiency, safety, and productivity in the cleaning of parts.
